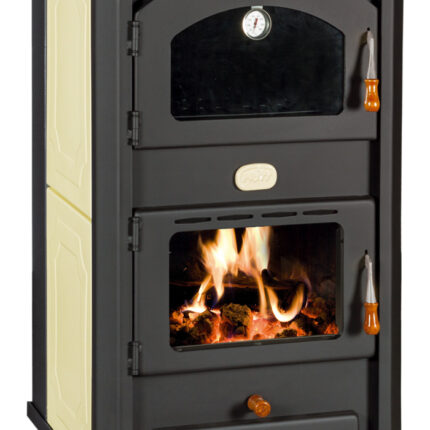

Termosemineu pe lemne cu cuptor si plita de gatit cu randament ridicat si certificat EcoDesign!

PRODUCT INFORMATION – FG W 20kW
Type of fuel – Dry woods with a moisture content of ≤20%
Energy efficiency classA
Energy efficiency index (EEI)102
Seasonal space heating energy efficiency (ηs)%68
Room heating outputkW5,4
Water heat output:
– nominalkW14,4
– maximumkW15
Volume of the water heaterl14
Maximum working pressure of the waterbar1,25
Flue gas temperature at nominal heat output°C192
Energy efficiency at the nominal heat output%76,5
Emission of combustion products at nominal heat output:
CO (at 13% O2)mg/Nm31031
PM (at 13% O2)mg/Nm326
NOx (at 13% O2)mg/Nm3103
OGC (at 13% O2)mg/Nm344
Exhaust gas mass flow rateg/s24
Minimum chimney draftPa10,7
Flue diameterØ, mm130
Fuel consumptionkg/h6,3
Fittings connection1
Overall dimensions, L x B x Hmm570 x 530 x 930
Dimensions combustion chamber, L x B x Hmm465 x 430 x 240
Oven dimensions, L x B x Hmm395 x 410 x 190
Net weightkg131
